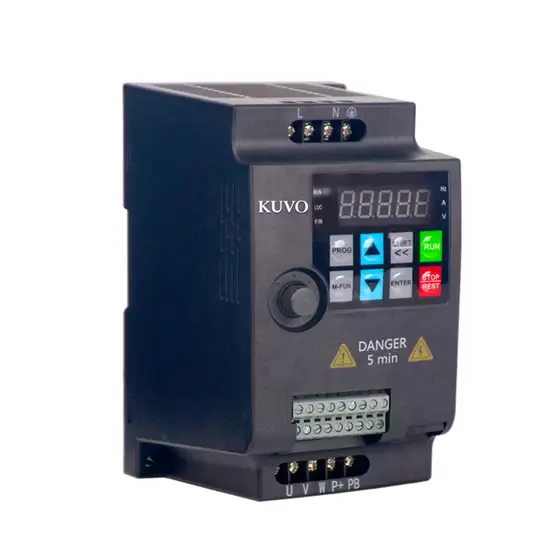

​A single-phase micro VFD (Variable Frequency Drive) is a compact and efficient device designed to control the speed and torque of single-phase AC motors. These micro VFDs are particularly useful in residential and light commercial settings where only single-phase power is available, offering precise motor control and energy efficiency.​

Understanding Single-Phase Micro VFD

Variable Frequency Drives work by converting the fixed frequency and voltage of the power supply into variable frequency and voltage, allowing for adjustable motor speeds. In single-phase micro VFDs, this technology is tailored for smaller motors, making them ideal for applications that don’t require high power output.​

Key Features

• Compact Design: Micro VFDs are designed to be space-saving, making them suitable for installations where space is limited.​
• Energy Efficiency: By adjusting motor speed to match load requirements, these VFDs can significantly reduce energy consumption.​
• Enhanced Motor Control: They offer precise control over motor speed and torque, improving process control and extending equipment life.​
• Built-in Protections: Features like overvoltage, undervoltage, and overcurrent protection safeguard both the VFD and the motor.​

Applications

Single-phase micro VFDs are versatile and can be used in various applications, including:​

• HVAC Systems: Controlling fans and blowers to maintain desired airflow and temperature.​
• Pumps: Adjusting pump speeds in water treatment or irrigation systems for optimal performance.​
• Conveyors: Managing conveyor speeds in manufacturing processes for better control and efficiency.​
• Home Appliances: Enhancing the performance of appliances like washing machines and air conditioners.​

Selecting the Right Single-Phase Micro VFD

When choosing a single-phase micro VFD, consider the following factors:

• Motor Compatibility: Ensure the VFD matches the motor’s voltage and current requirements.​
• Control Features: Look for VFDs with the necessary control options, such as PID control or multi-speed settings.​
• Environmental Conditions: Select a VFD with appropriate protection ratings for the installation environment.​
• Ease of Use: Consider VFDs with user-friendly interfaces for easier setup and operation.​

Installation and Maintenance

Proper installation and regular maintenance are crucial for the optimal performance of single-phase micro VFDs:

• Installation: Follow the manufacturer’s guidelines for wiring and mounting to ensure safety and functionality.​
• Cooling: Ensure adequate ventilation to prevent overheating.​
• Regular Checks: Periodically inspect connections and settings to maintain performance and address any issues promptly.​

Conclusion

Single-phase micro VFDs offer a practical solution for controlling motor speed and improving energy efficiency in various applications. Their compact size and advanced control features make them an excellent choice for residential and light commercial use. Users can achieve enhanced control, energy savings, and extended equipment lifespan by selecting the appropriate VFD and ensuring proper installation and maintenance.
