In today’s world of motor control and energy efficiency, a small VFD (Variable Frequency Drive) has become an essential tool for both industrial and personal applications. Whether you’re running a modest workshop or controlling pumps, fans, or conveyors, small VFDs offer flexibility, energy savings, and smooth performance. Understanding their capabilities, limitations, and best practices is crucial before selecting the right unit for your needs.

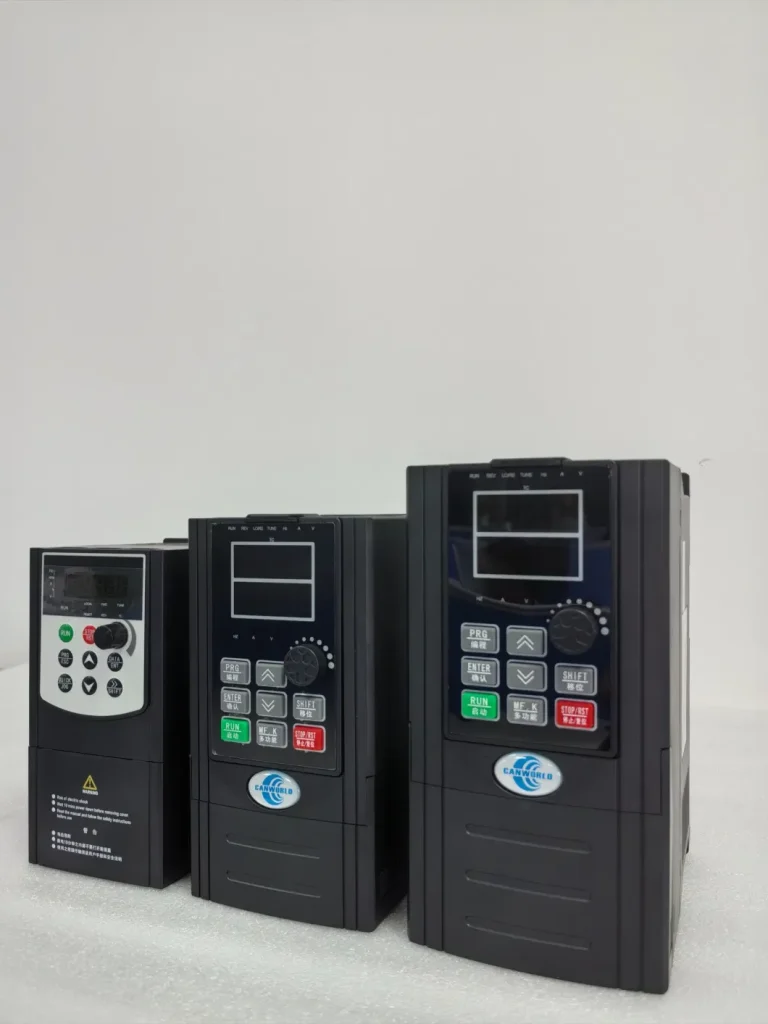

What is a Small VFD?

A small VFD is a compact device that regulates the speed and torque of an electric motor by varying the frequency and voltage of its power supply. Typically used for motors ranging from fractional horsepower up to a few horsepower, these VFDs are built to deliver precise control while maintaining energy efficiency.

Modern small VFDs come packed with features like built-in protection systems, user-friendly interfaces, and programmable settings, making them ideal for smaller operations where full-size drives would be unnecessary or cost-inefficient.

Why Choose a Small VFD?

Choosing a small VFD is a smart decision for several reasons:

• Energy Efficiency: Reducing motor speed when full power isn’t required leads to significant energy savings.
• Compact Size: They are easier to install, often fitting into tight spaces without the need for large enclosures.
• Cost-Effective: Small VFDs cost less upfront and can extend the life of your motor by reducing mechanical stress.
• Precision Control: You get fine control over motor speed, acceleration, and deceleration, which improves process performance.

Small VFDs are perfect for applications like HVAC systems, small pumps, fans, woodworking machinery, and other light-duty tasks.

What Happens If You Put a Small Motor on a Large VFD?

A common question arises: what happens if you put a small motor on a large VFD?

Technically, you can connect a smaller motor to a larger VFD, but it’s not always recommended. Here’s why:

• Control Issues: A VFD sized too large for the motor may have difficulty accurately controlling low currents, potentially leading to unstable operation.
• Protection Mismatch: Overload protection settings may not match well, increasing the risk of motor damage.
• Higher Costs: You’re paying for more capacity than needed, leading to unnecessary expenses.

Some VFDs allow precise current tuning to accommodate smaller motors safely, but careful configuration is crucial. Always consult the VFD manual and ensure that the drive’s output matches the motor’s requirements.

How Small of a VFD Can I Get?

If you’re wondering, how small of a VFD can I get, the answer largely depends on your motor’s power rating.

• Fractional Horsepower Models: Small VFDs are available for motors as small as 1/10 HP (0.1 HP), commonly used in small fans or pumps.
• Low Voltage Drives: Some manufacturers offer miniature drives operating at low voltages (120V or 230V), suitable for residential or light commercial use.
• Integrated VFD Motors: For the tiniest applications, some motors come with a built-in micro VFD, saving even more space.

Manufacturers like Delta, Yaskawa, and Schneider Electric offer small VFD models that are highly reliable, efficient, and feature-rich even at low power ratings.

Features to Look for in a Small VFD

When choosing a small VFDs, here are the features that matter most:

• Ease of Programming: Look for VFDs with intuitive menus and preconfigured settings.
• Built-in Protection: Overcurrent, overvoltage, and thermal protection are essential.
• Communication Options: Some models offer Modbus or Bluetooth connectivity for remote monitoring.
• Soft Start/Stop: This feature protects your motor and the mechanical system from shocks during startup and shutdown.

Practical Applications of small vdfs

Small VFDs have a wide range of practical uses, including:

• Home Workshops: Controlling small lathes, drill presses, or milling machines.
• Aquariums and Pools: Regulating water pumps for optimal flow and efficiency.
• Agriculture: Driving small irrigation pumps or feeding systems.
• HVAC Systems: Adjusting fan speeds for better climate control and energy savings.

Best Practices for Using Small VFDs

• Proper Sizing: Always match the VFD closely to the motor’s voltage, current, and horsepower ratings.
• Environment Considerations: Ensure the drive is rated for the environment (e.g., dustproof, waterproof if needed).
• Maintenance: Perform regular inspections and firmware updates to keep the VFD running smoothly.
• Read the Manual: Each VFD has specific setup procedures—always refer to the manufacturer’s instructions.

Conclusion

A small VFD offers a powerful solution for efficient and precise motor control across a variety of applications. Whether you’re curious about what happens if you put a small motor on a large VFD or wondering how small of a VFD can I get, understanding the capabilities and limitations of these drives is key. With proper selection, installation, and maintenance, small VFDs can help you maximize performance, save energy, and extend the life of your motors—all without breaking the bank.
